Fuel Coolant Pump Relocation Kit w/ MicroPure XR® Engine Oil Filter - GM 6.6L Duramax 2020-2026

Duramax Fuel Coolant Pump Relocation Kit with needed MicroPure XR® Engine Oil Filter- GM 6.6L Duramax 2020-2026

SKU: 114002700 and 114000750

Want to run the largest and most capable oil filter available for your L5P Duramax?

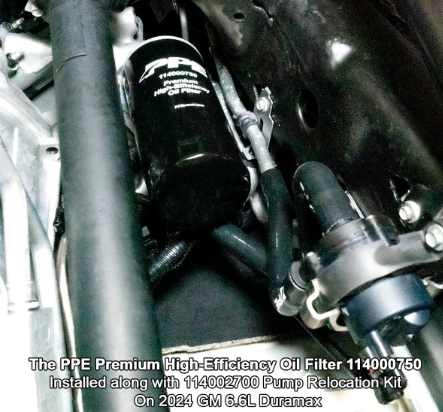

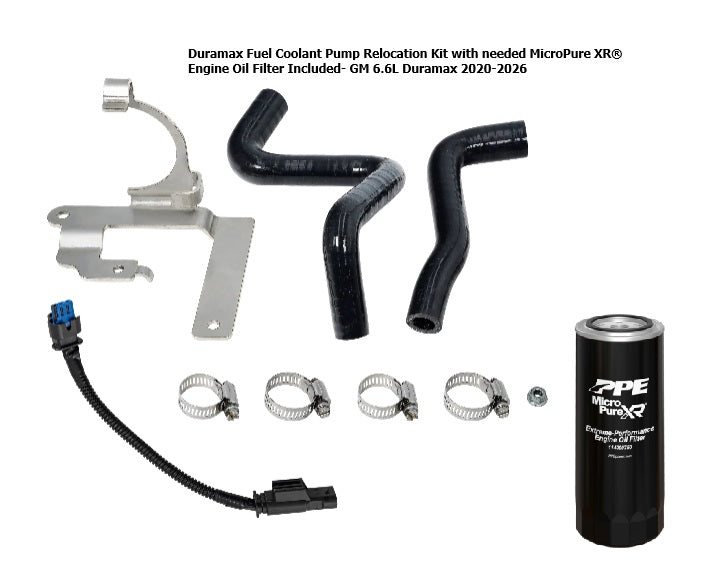

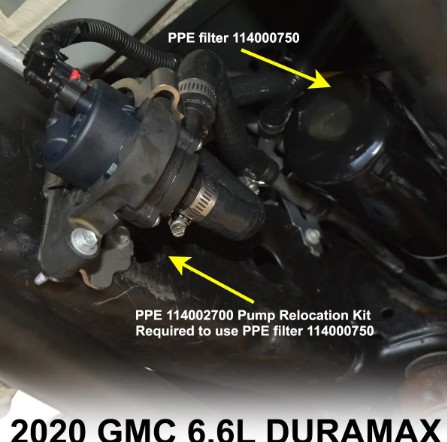

This fuel coolant pump relocation kit moves the factory fuel coolant pump away from the oil filter housing, providing the clearance required for the PPE Deep Engine Oil Filter.

This item is for the whole kit with dilter included. If you already have the Relcation and just need a new filter, the  2020-2026 GM 6.6L Duramax MicroPure XR® Engine Oil Filter PArt Number is 114000750. Relation kit only is Part Number 114002700.

Need install? Send us a message!

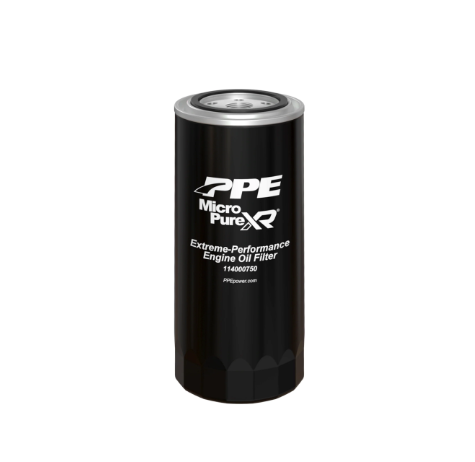

Featuring increased filtration capacity and enhanced contaminant-holding ability, the PPE Deep Engine Oil Filter is the perfect upgrade for improved engine protection and long-term reliability.

FEATURES

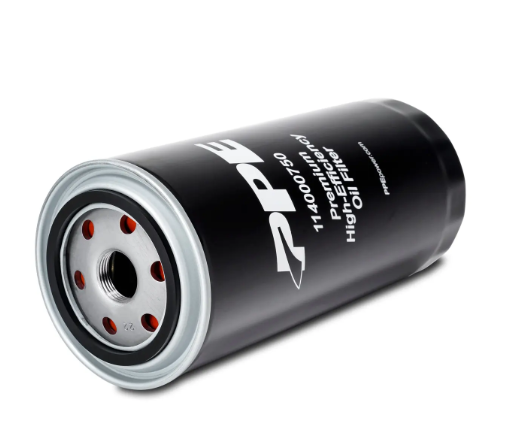

• Allows increased capacity and filtration benefits of the larger PPE Oil Filter (114000750)


• MicroPure XR® filtration with a 5-micron nominal rating
• 522 Square inches of ultra-fine synthetic microfiber media, a 100% increase over the stock filter
• Integrated high-temperature rated neodymium magnet captures ferrous particles, providing extra engine protection
• Built-in bypass valve with precision coil spring and steel-NBR poppet
• High-strength steel base plate with increased thread engagement and large oil passages
• Durable metal center tube provides excellent media support and pressure resistance
• TorqSTOP™ Technology prevents over-tightening and reinforces the gasket against high oil pressures
• Silicone anti-drainback valve delivers superior protection during engine start-ups
• Heavy-duty coil spring ensures a secure seal and prevents oil blow-by, maximizing filtration performance
• Pleat-locking spiral bead keeps media pleats evenly spaced for consistent filtration performance

Prop 65: Warning: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Compatible Vehicles
