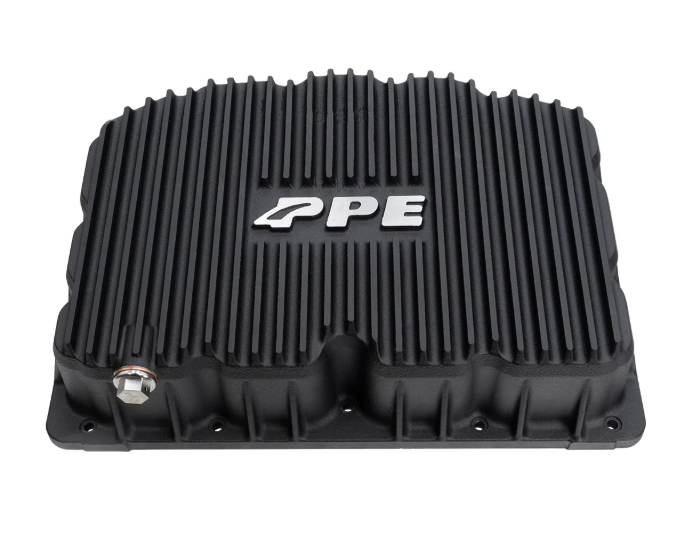

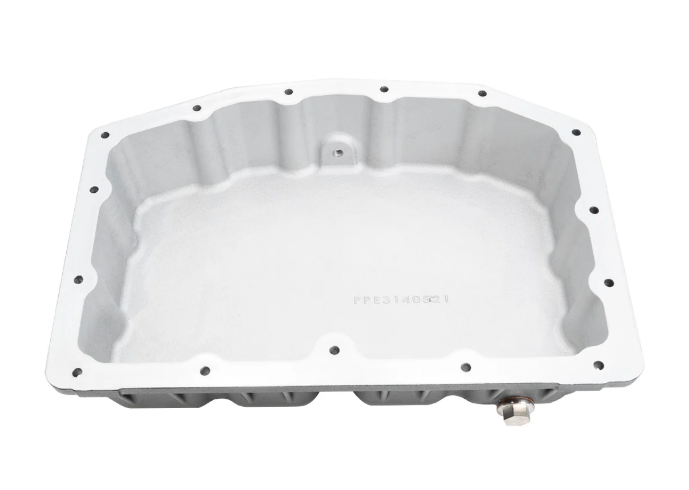

2011-2026 Ford 6.7L Power Stroke Heavy-Duty Cast Aluminum Engine Oil Pan, Black

Black Heavy-Duty Cast Aluminum Engine Oil Pan 2011-2026 Ford 6.7L Power Stroke

PART NUMBER: 314052120

Looking for another color, such as raw? Send a message!

Need installation? We can help! Send us a message.

• Premium A356.0-T6 heat-treated cast aluminum alloy – a high-strength, thermally conductive material
• Precision-cast using permanent steel molds for a smooth, consistent finish and high dimensional accuracy
• Increases oil capacity by one quart for higher thermal capacity
• 3/8-inch external fins improve heat dissipation, lower transmission fluid temperature, and increase impact resistance
• Cast-in gussets for additional upper oil pan flange support and increased rigidity
• Stainless steel drain plug with built-in high temperature rated neodymium magnet
• Equipped with a 1/8-inch NPT port with pre-installed NPT plug

Heavy-Duty Cast Aluminum Engine Oil Pan

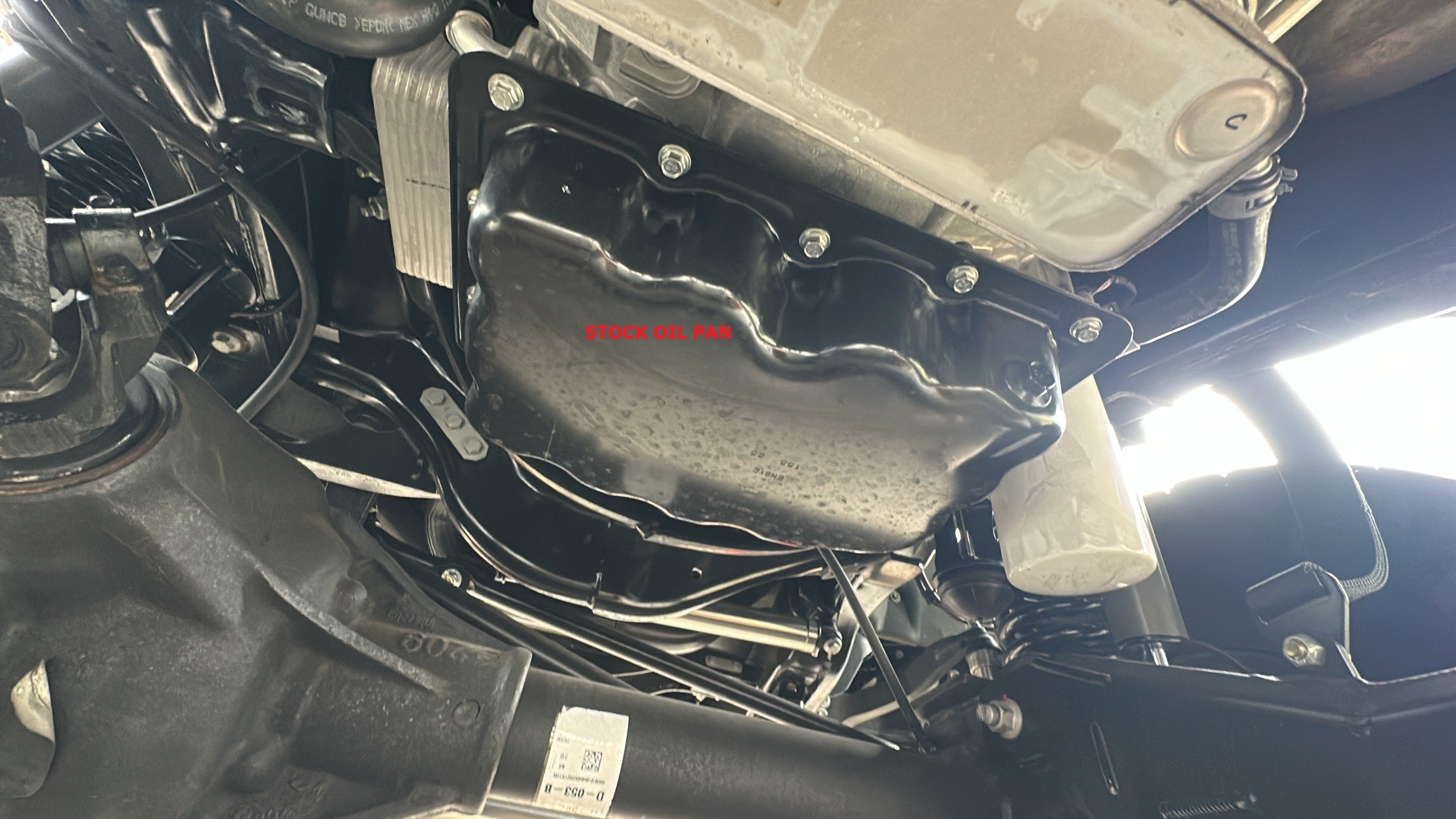

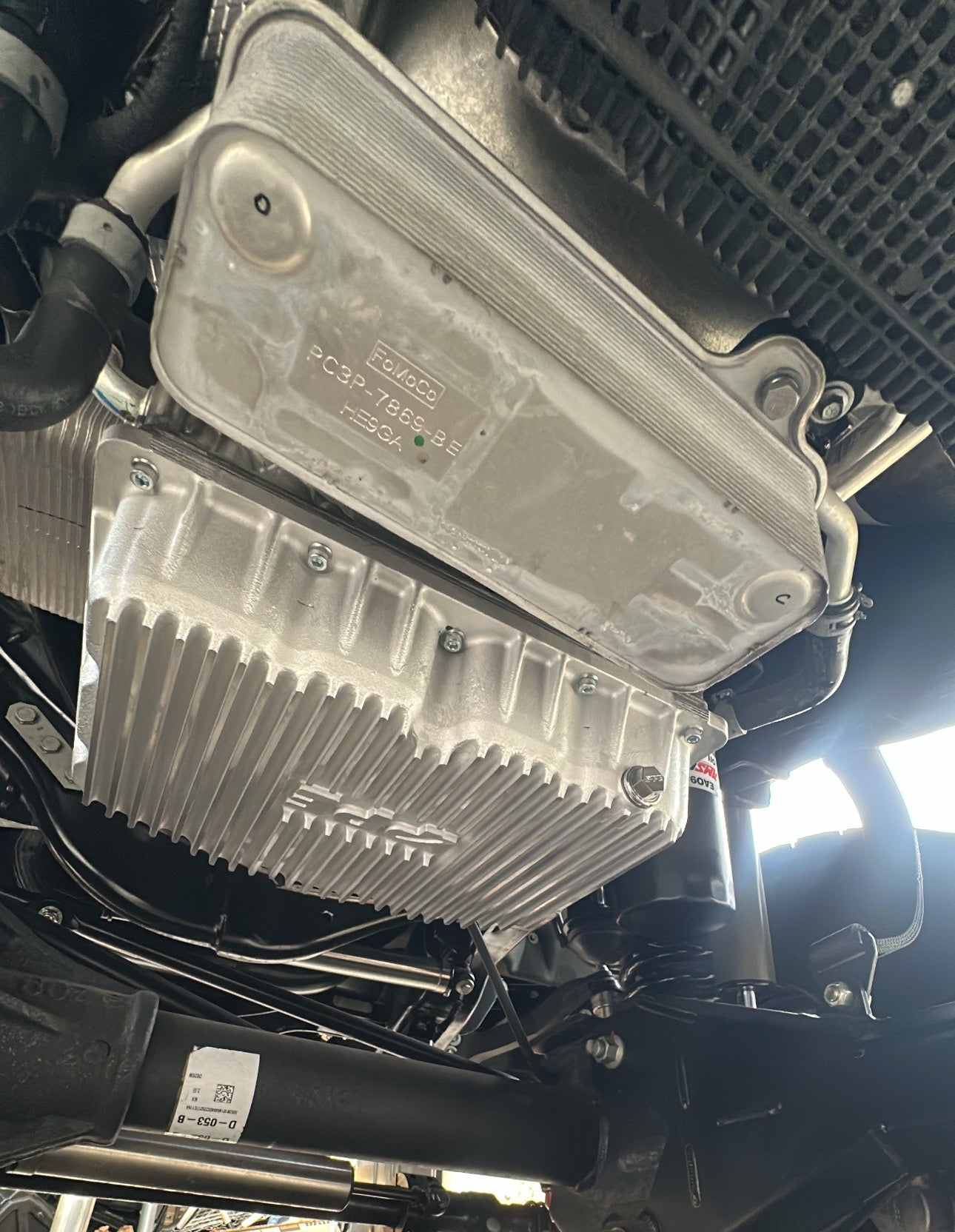

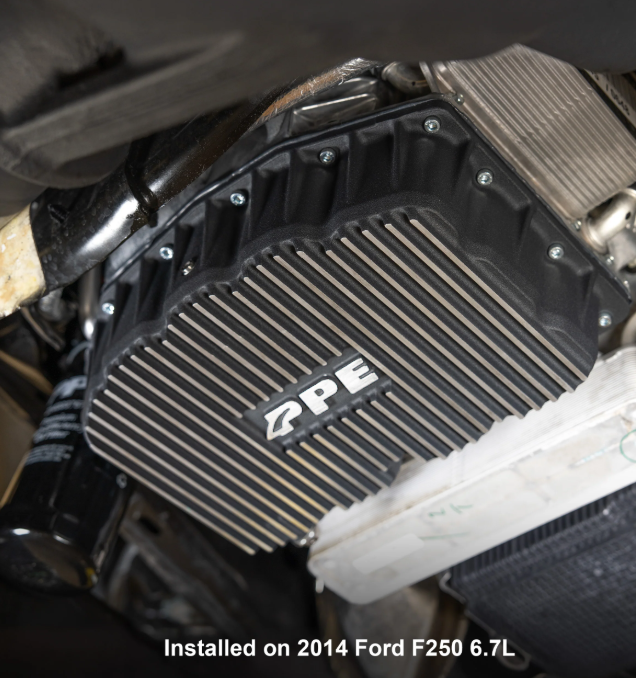

Cast from high-grade A356.0-T6 aluminum alloy and holding a full quart over stock, this pan is a perfect upgrade to the factory stamped steel or flimsy plastic versions. We’ve addressed the major issues associated with the original Ford factory oil pan. Deep external cooling fins radiate heat and help the engine operate at much cooler temperatures than the stock pan. Thanks to its thick, cast aluminum construction, external fins, and the addition of side gussets, this easy-to-install upgrade is much stronger and runs much cooler than the stock units.

The PPE Oil Pan Kit includes a hardened billet stainless steel drain plug which contains a powerful Neodymium magnet that attracts and holds ferrous metal particles, keeping them from damaging your engine’s vital internal components.

Compatible Vehicles
