Engine Oil Filter - MicroPure XR® w/ TorqSTOP™ 2001-2019 GM 6.6L Duramax
Engine Oil Filter - MicroPure XR® w/ TorqSTOP™ 2001-2019 GM 6.6L Duramax
Engine Oil Filter - MicroPure XR® w/ TorqSTOP™ 2001-2019 GM 6.6L Duramax
- SKU: 114000555
- Fitment Year: 2001-2019
- Make: GM / Chevrolet
- Model: Silverado 2500, Sierra 2500, Express, Savana, Sierra 3500, Silverado 3500
- Engine: 6.6L
- Fuel Type: Diesel
- Warranty: 1 YEAR LIMITED WARRANTY
- Color: Grey
- Note: OEM part # PF2232
FEATURES
- MicroPure XR® filtration with a 5-micron nominal rating
- 900 Square inches of filtration media, a 150% increase over the stock filter
- Integrated heat-resistant neodymium magnet for extra protection
- Built-in bypass valve with a stiffer spring and a rubber seal
- Thick base plate with more thread engagement and 47% larger oil passages
- Perforated metal center tube for rigid media support
- TorqSTOP™ Technology enables a burst pressure rating of 450 PSI
- Silicone anti-drainback valve prevents dry starts
- Coil spring maintains a tight seal, eliminates oil blow-by
- Direct replacement for the stock oil filter AC-Delco PF2232

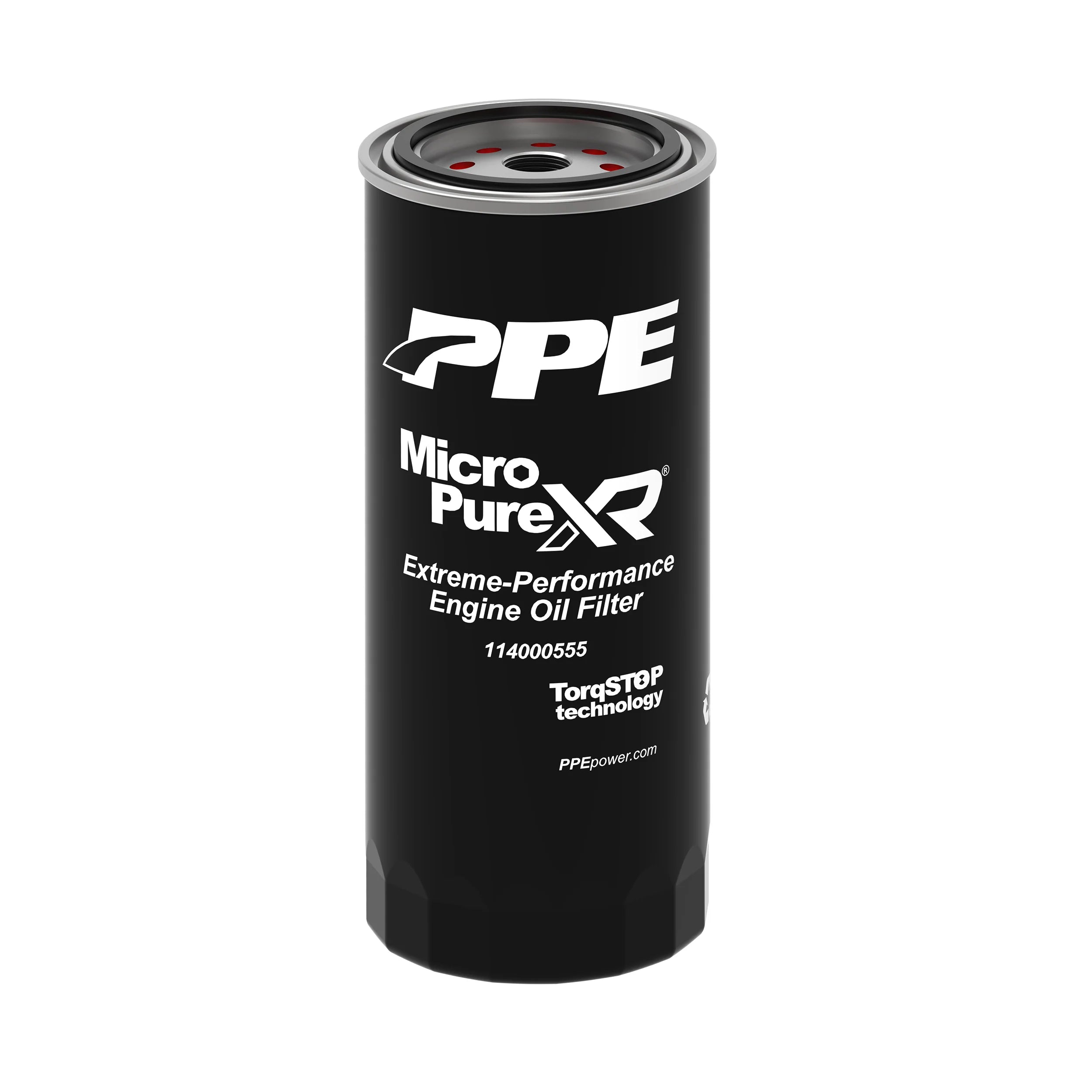

GM 6.6L Duramax MicroPure XR® Engine Oil Filter - Featuring TorqSTOP™ Technology

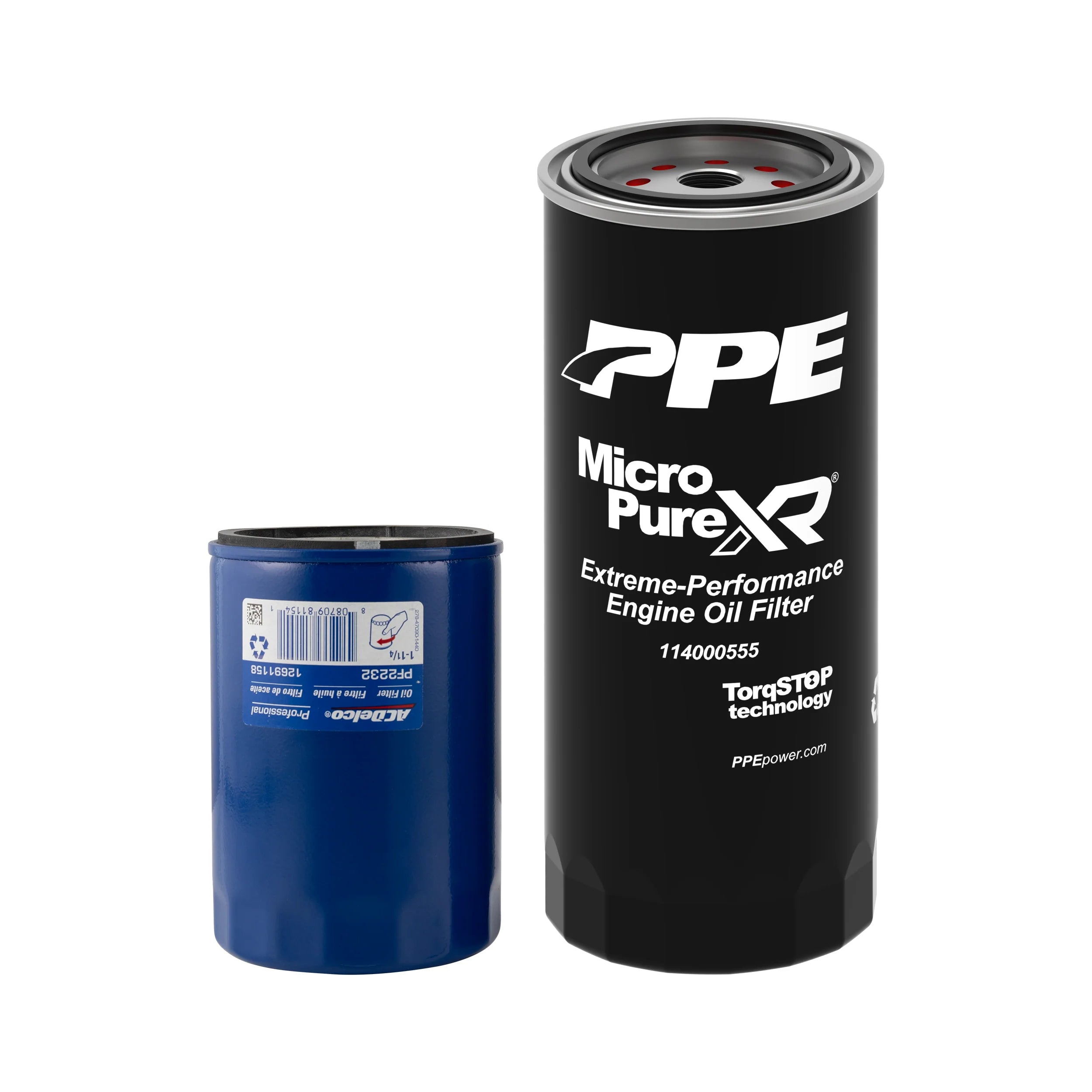

The oil filter is your engine’s first line of defense against contaminants that degrade oil performance and reduce oil lifespan. Poor filter performance and the presence of oil contaminants can lead to premature wear and potential failure of engine internals. The OEM filter falls short, only offering 357 square inches of 20-micron filtration capability and using a weak leaf spring, reducing seal quality and allowing dirty oil to blow past the filter media.
PPE’s upgraded filter provides 900 square inches of filtration area, a 150% increase over the OEM filter. The specially engineered ultra-fine synthetic microfiber MicroPure XR® media achieves a 5-micron nominal rating. An integrated high-temperature rated neodymium magnet also allows the PPE filter to capture ferrous particles, preventing them from clogging the media, extending filter and oil life. The use of a heavy-duty coil spring ensures a secure seal between the media end cap and the base plate, eliminating dirty oil blow-by and maximizing filtration performance.
In contrast to competitors’ unsealed bypass valve, the PPE filter incorporates a steel-NBR poppet and a precision coil spring to ensure a proper seal and consistent performance. The PPE filter also features a heat-resistant silicone anti-drainback valve, retaining oil in the filter after the engine is turned off for superior protection against dry starts.
The PPE filter’s heavy-duty construction, consisting of a high-strength steel base plate with increased thread engagement and large oil passages as well as a durable metal center tube for rigid media support and pressure resistance, allow for maximum confidence in all conditions. An integrated pleat-locking spiral bead of adhesive keeps filter media pleats secured and evenly spaced for consistent filtration performance. Additionally, PPE’s TorqSTOP™ Technology prevents over-tightening and reinforces the rubber gasket, enabling a burst pressure rating of 450PSI.
